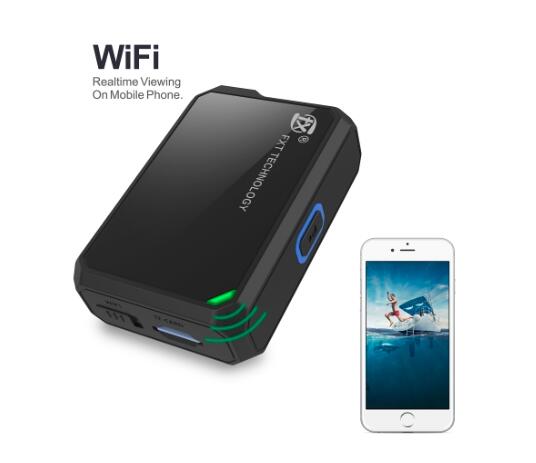

FEATURES:
• The first analogue DVR recording support 60FPS with battery.
• 2.4Ghz WiFi siginal transmission, support Android & iOS smartphone
• Size: 60mm X 40mm X 19mm
• NTSC: 720×480 Pixels; PAL: 720X576 Pixels
• Built-in battery,recording time is not less than 1.5h.
SPECIFICATION
Device Interface
• DC-IN:DC 7~28V
• AV-IN:Supply CVBS + Audio L + Audio R
• AV-OUT:Supply CVBS + Audio L + Audio R
• Micro SD:Max:32GB
• Video input format:NTSC、PAL
• Video input characteristic impedance:75Ω
• Audio amplitude input range:2Vp-p±0.2V
• Video amplitude input range:1Vp-p±0.2V
DVR
• Recording resolution:720×576（PAL video） or 720×480（ NTSC video）
• recording frame rate:60FPS
• Loop recording:ON/OFF
• Photo resolution:720×576 or 720×480
• Photo format:JPG
• Video segmentation:1M/3M/5M/10M
• Video coding：H.264 、JPEG
• Video file size：28M/minute
WIFI AP
• working frequency:2400－2483.5
• Wireless protocol:IEEE 802.11b, IEEE 802.11g, IEEE 802.n
• Default SSID:FXT-DVR
• SSID default password:12345678
• WIFI AP number of clients connected at the same time:At most 3pcs
• Transmit power:14±2dBm
• Modulation method:802.11b：DSSS (CCK, DQPSK, DBPSK); 802.11g/n：OFDM (BPSK, QPSK, 16QAM, 64QAM)
• encryption method:WPA2
• Antenna gain:2dBi
• Unobstructed transmission distance:≤10M（stadia，Unobstructed ）
APP
• APP operating system:Android、IOS
• System version support:Android5.0 and above、IOS9.0 and above
• APP recording resolution:720×576（PAL video） or 720×480（NTSC video）
• APP recording frame rate:30FPS
• APP photo resolution:720×576 or 720×480
• APP photo format:JPG
General
• Supply voltage:7~28V
• Average power consumption:<1.8W
• weight:36g
• size:61x42x19mm
• Work Temperature:-10～+45℃
• Storage Temperature:–20～+60℃
• Working humidity:20%~90%
Warning
1. Make sure connect video input first, then power on DVR
2. Confirm PAL/NTSC setup for camera first, then power on DVR
3. From DVR power-off to repower on, 10-seconds-waiting is a must-have
Package Included
1 x DVR host 1 x host back clip
1 x Audio and video cable: double-ended 4-segment φ3.5mm audio head
1 x Audio and video cable: 4-segment φ3.5mm audio head to 3-segment φ2.5mm audio head
1 x Audio and video cable: 4-segment φ3.5mm audio head to RCA audio and video female head
