This launch is applied to the tower map transmission of FPV Drone. The launch has dual antennas and the same channel, eliminating blind spots during the flying over, and the image quality is more stable.
The transmit power is adjustable (50mw, 300mw, 800mw) for a variety of flight locations.
The button operation:
1. Press the CH key to digitize the digital tube. Press CH again to switch channels. Channel 1-8 is displayed cyclically. 3 seconds without
The button operation returns to the normal display mode.
2. Press the FR button to display the English characters constantly. Press the FR button again to switch the frequency band. Bands A, b, E, F, and L
Loop display. 3 seconds without key operation returns to normal display mode.
3. Press CH and FR at the same time, the digital tube P point is always on, press CH or FR again to switch the power, P point flashes once.
For working at 50mw, the flashing is 300mw twice, and the flashing is 800mw three times. 3 seconds without key operation returns to normal display

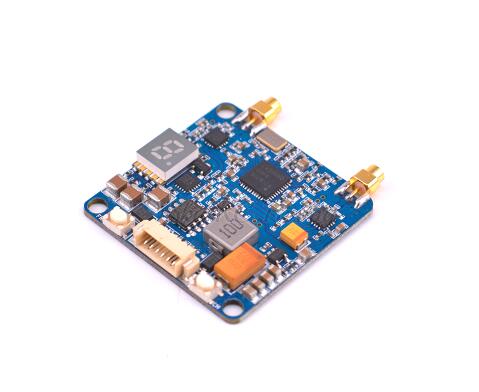

1 x SJ-FT29 5.8G 48CH 50mw/300mw/800mw Switchable Transmitter
